Color difference algorithm – part 2

September 8, 2009 • Php, Tutorials by Emanuele Feronato • 11 Comments

It’s time to see how to calculate difference between two colors.

I am using the CIE1994 formula because it’s quite accurate and not that complex to calculate.

Here it is, assuming I have two colors in Lab format

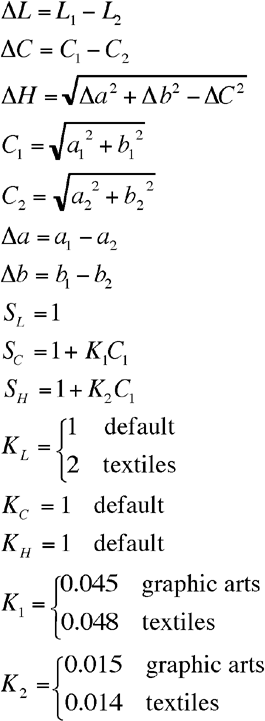

where

(thanx to Bruce Lindbloom)

First, I am turning the scripts explained at Color difference algorithm into functions, this way:

function rgb_to_xyz($rgb){

$red = $rgb[0];

$green = $rgb[1];

$blue = $rgb[2];

$_red = $red/255;

$_green = $green/255;

$_blue = $blue/255;

if($_red>0.04045){

$_red = ($_red+0.055)/1.055;

$_red = pow($_red,2.4);

}

else{

$_red = $_red/12.92;

}

if($_green>0.04045){

$_green = ($_green+0.055)/1.055;

$_green = pow($_green,2.4);

}

else{

$_green = $_green/12.92;

}

if($_blue>0.04045){

$_blue = ($_blue+0.055)/1.055;

$_blue = pow($_blue,2.4);

}

else{

$_blue = $_blue/12.92;

}

$_red *= 100;

$_green *= 100;

$_blue *= 100;

$x = $_red * 0.4124 + $_green * 0.3576 + $_blue * 0.1805;

$y = $_red * 0.2126 + $_green * 0.7152 + $_blue * 0.0722;

$z = $_red * 0.0193 + $_green * 0.1192 + $_blue * 0.9505;

return(array($x,$y,$z));

}

and…

function xyz_to_lab($xyz){

$x = $xyz[0];

$y = $xyz[1];

$z = $xyz[2];

$_x = $x/95.047;

$_y = $y/100;

$_z = $z/108.883;

if($_x>0.008856){

$_x = pow($_x,1/3);

}

else{

$_x = 7.787*$_x + 16/116;

}

if($_y>0.008856){

$_y = pow($_y,1/3);

}

else{

$_y = (7.787*$_y) + (16/116);

}

if($_z>0.008856){

$_z = pow($_z,1/3);

}

else{

$_z = 7.787*$_z + 16/116;

}

$l= 116*$_y -16;

$a= 500*($_x-$_y);

$b= 200*($_y-$_z);

return(array($l,$a,$b));

}

Now, it’s time to determine color difference, using the above formula:

function de_1994($lab1,$lab2){

$c1 = sqrt($lab1[1]*$lab1[1]+$lab1[2]*$lab1[2]);

$c2 = sqrt($lab2[1]*$lab2[1]+$lab2[2]*$lab2[2]);

$dc = $c1-$c2;

$dl = $lab1[0]-$lab2[0];

$da = $lab1[1]-$lab2[1];

$db = $lab1[2]-$lab2[2];

$dh = sqrt(($da*$da)+($db*$db)-($dc*$dc));

$first = $dl;

$second = $dc/(1+0.045*$c1);

$third = $dh/(1+0.015*$c1);

return(sqrt($first*$first+$second*$second+$third*$third));

}

And you’ll find the difference between colors.

Next time, a real application using all this boring theory… (you will be surprised…)

Rate this post: 1 Star

(5 votes, average: 5.00 out of 5)

Loading ...

Be my fan on Facebook and follow me on Twitter! Exclusive content for my Facebook fans and Twitter followers

This post has 11 comments

dim

on September 9, 2009 at 12:40 am

great snippet … i will love to see a function that can generate lighter or darker color by a given color value through parameter

this will be very handy when we want to auto generate color themes bye given color value by user
How to Choose Colours Procedurally (Algorithms) » devmag.org.za

on July 30, 2012 at 10:49 am

[...] http://www.emanueleferonato.com/2009/09/08/color-difference-algorithm-part-2/ [...]
Eduardo

on October 27, 2012 at 10:06 pm

I trying to transfer this code to pascal. I don’t understan the following operation:
$_red *= 100;
$_green *= 100;
$_blue *= 100;
Could you explain to me?
kpodenphant

on November 12, 2012 at 1:12 am

This is frickin’ awesome.I ported it to Actionscript.
I tried the RGB distance method which worked ok, but had some errors. Then i tried converting to HSB which worked well for the RGB errors but has some other error.
This algorithm is sweet!
anonyMouse

on December 28, 2012 at 3:33 pm

Eduardo it means that the variable is set to its current value times 100;

i.e. red=2;
red*=100; (red is now 200, all further code that uses the variable “red” will now use 200 rather than 2);
Radek

on February 16, 2013 at 9:04 pm

Thanks for great snippet Emanuele !
Just one point – shouldn’t be used abs(…) for all delta computations in de_1994() ?
Thanks anyway !
Igor

on March 9, 2013 at 12:11 pm

Thanks for explaining this stuff, and for your snippets of code )

I’d like to use those snippets in our project, but in your post you don’t mention it anywhere, so can I ask you if it’s okay to reuse them? And if so, can you please put a license note on them, so they will be legally accessible?
Emanuele Feronato

on March 11, 2013 at 5:37 pm

Hello Igor,

use it as you want, there’s no restriction, ok?
Dylan

on May 5, 2013 at 9:10 pm

Thanks for this, it saved me A LOT of time.

I had to change Line 8 of de_1994 to $dh = sqrt(abs(($da*$da)+($db*$db)-($dc*$dc)));
Dylan

on May 6, 2013 at 1:29 am

Change line 8 of de_1994 to:
$dh = sqrt(($da*$da)+($db*$db)+($dc*$dc));
Dylan

on May 6, 2013 at 4:21 pm

You are going to kill me!!! Ignore the nonsense I posted earlier…

Change line 8 of de_1994 to:
$dh = ($da * $da) + ($db * $db) – ($dc * $dc);
if ($dh < 0) { $dh = 0; } else { $dh = sqrt($dh); }

I guess the problem is an excessively large delta C resulting in a sqrt of a negative number. This was causing NaN on many comparisons.
