Worms-like destructible terrain in Flash – Part 2

August 5, 2010 • Actionscript 3, Flash, Game design, Users contributions by Emanuele Feronato • 24 Comments

After having some troubles with the email, I am finally able to post Jordi Sanglas Molist‘s second step of Worms-like destructible terrain in Flash.

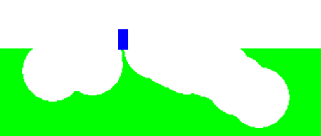

Now the character can jump and move. I’ve also solved a bug: in the last script I checked a collision using the feet, so if the terrain was between both feet the character would fall.

Now, instead of using a hitTest between a BitmapData and a point I use a hitTest between a BitmapData and a Rectangle.

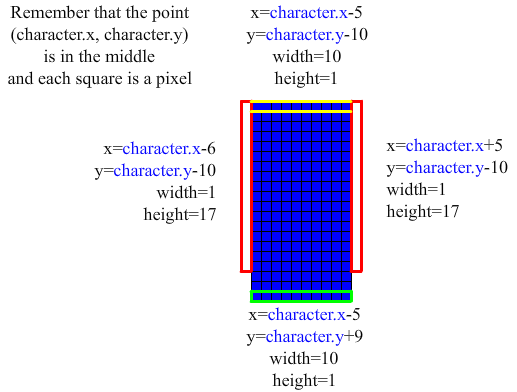

We have to check more collisions, so I used four rectangles:

* The rectangle below the character is used to check if the character must fall

* The rectangle above the character is used to check if the character hit the ground (while he was jumping)

* The rectangles at the sides are used to check if the character can move.

These rectangles aren’t as long as the character, they’re 17 pixels height instead of 20. That’s because, if the character wants to move left and the obstacle isn’t high enough (high enough to reach the rectangle), the character will be able to move. A similar strategy is used in “Create a flash draw game like line rider or others – part 5“, where a point (the knee point) is used to check if the character can move.

I renamed the function “fall”: now it’s “move_character”. I only commented the new lines. Now I’m working on part 3, but I still don’t know how to calculate the explosion impulse. I looked for some information, but now I’m thinking about maths (an explosion is a growing circle).

This is the script:

package {
	import flash.display.Sprite;
	import flash.display.Bitmap;
	import flash.display.BitmapData;
	import flash.display.BlendMode;
	import flash.geom.Point;
	import flash.geom.Rectangle;
	import flash.geom.Matrix;
	import flash.events.Event;
	import flash.events.MouseEvent;
	import flash.events.KeyboardEvent;

	public class worms extends Sprite {

		public var terrain_bmpd:BitmapData=new BitmapData(550,200,true,0xFF00FF00);
		public var terrain_bmp:Bitmap=new Bitmap(terrain_bmpd);
		public var character:Sprite=new Sprite  ;
		public var character_speed:Number=0;//That number is the y speed that the character has
		public var hole:Sprite=new Sprite  ;
		public var hole_matrix:Matrix;
		public var left_key:Boolean;
		public var right_key:Boolean;
		public var space_key:Boolean;
		public var jumping:Boolean=true;//When that variable is true, the character is in the air
		public var i:int;//We will use this variable to make a loop

		public function worms() {
			draw_objects();

			stage.addEventListener(Event.ENTER_FRAME,move_character);
			stage.addEventListener(MouseEvent.MOUSE_UP,mouse_up);
			stage.addEventListener(KeyboardEvent.KEY_DOWN,key_down);
			stage.addEventListener(KeyboardEvent.KEY_UP,key_up);
		}

		public function move_character(e:Event) {
			//If left key is pressed, we'll move the character to the left
			if (left_key) {
				for (i=0; i<3; i++) {//Do you remember when we made the character fall? We had to move the character pixel by pixel
					if (! terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x-6,character.y-10,1,17))) {
						character.x--;	/*If the character doesn't hit the ground, we can move left. However,
										the character may be sunk under the ground. We have to lift it*/
						while (terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x-5,character.y+9,10,1))) {
							character.y--;
						}
					}
				}
			}
			if (right_key) {//Well, that's the same for the right key
				for (i=0; i<3; i++) {
					if (! terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x+5,character.y-10,1,17))) {
						character.x++;
						while (terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x-5,character.y+9,10,1))) {
							character.y--;
						}
					}
				}
			}
			if (space_key&&! jumping) {//That's easy: if he isn't jumping and you press space, his speed will be negative and he'll jump
				character_speed=-10;
				jumping=true;//Now the character can't jump again
			}

			character_speed++;//Every frame we will increase character's speed
			if (character_speed>0) {
				//If the speed is positive, we will check a collision between the terrain and the rectangle below the character
				for (i=0; i<character_speed; i++) {//We check the collision pixel by pixel...
					if (! terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x-5,character.y+9,10,1))) {
						character.y++;//If there isn't a collision, the character will fall
					} else {
						jumping=false;//If there's a collision with the ground, the character isn't jumping
						character_speed=0;//The speed is 0, because the character hit the ground
					}
				}
			} else {
				for (i=0; i<Math.abs(character_speed); i++) {//If the speed is negative, the for loop won't work. We have to use Math.abs().
				//Now we will check the collision between the terrain and the rectangle above the character
					if (! terrain_bmpd.hitTest(new Point(terrain_bmp.x,terrain_bmp.y),0x01,new Rectangle(character.x-5,character.y-10,10,1))) {
						character.y--;
					} else {
						character_speed=0;//Well, that's the same: the character hit the ground
					}
				}
			}
		}

		public function mouse_up(e:MouseEvent) {
			hole_matrix=new Matrix  ;
			hole_matrix.translate(e.stageX-terrain_bmp.x,e.stageY-terrain_bmp.y);
			terrain_bmpd.draw(hole,hole_matrix,null,BlendMode.ERASE);

		}

		public function key_down(e:KeyboardEvent) {
			if (e.keyCode==37) {
				left_key=true;
			}
			if (e.keyCode==39) {
				right_key=true;
			}
			if (e.keyCode==32) {
				space_key=true;
			}
		}
		public function key_up(e:KeyboardEvent) {
			if (e.keyCode==37) {
				left_key=false;
			}
			if (e.keyCode==39) {
				right_key=false;
			}
			if (e.keyCode==32) {
				space_key=false;
			}
		}

		public function draw_objects() {
			terrain_bmp.y=200;
			stage.addChild(terrain_bmp);

			character.graphics.beginFill(0x0000FF);
			character.graphics.drawRect(-5,-10,10,20);
			character.x=250;
			stage.addChild(character);

			hole.graphics.beginFill(0x000000);
			hole.graphics.drawCircle(0,0,30);
		}
	}
}

And this is the result:

Move the player with left – right arrow keys and click on the terrain to create an explosion.

Download the source code. Now Jordi is trying to manage explosion impulse but he’s having some problems. Any blog-bomber reader willing to read?
