Create an HTML5 game like The Next Arrow using Phaser

Read all posts about "" game

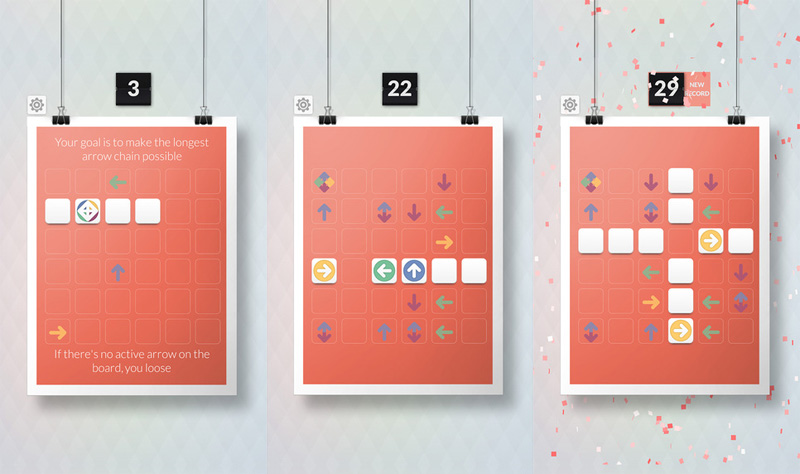

Did you play The Next Arrow by Kevin Choteau?

It’s a fun puzzle/strategy game, probably too much luck-driven but I found the concept behind it quite interesting.

When I saw the game, I said “ok, here’s another game I can make in less than 100 lines, just like I made Boom Dots and 1+2=3“.

The plan was to make the game in less than 100 lines then explain it, but it turned to be more complex than I supposed and eventually it took me more then 200 lines to create the entire game.

I will need more than a single post to explain all the concepts behind it, so at the moment I am giving you the source code, and explain it later.

Before we start, that’s what you are going to build:

Click on a white arrow to make the longest chain possible, the game ends when there aren’t possible moves.

And this is the full, uncommented source code, but you can ask everything you want by leaving a comment:

window.onload = function() {
	var game = new Phaser.Game(320, 400);
	var fieldSize = 6;
	var tileSize = 48;
	var fieldArray = [];
	var startingArrows = 16;
     var doubleRatio = 10;
     var quadrupleRatio = 5;
	var moving = false;
     var offsetX;
	var offsetY;
	var scoreText;
	var topScore;
	var score;
	var playGame = function(game){}
	playGame.prototype = {
		preload: function(){
			game.stage.backgroundColor = "#888888";
			game.load.spritesheet("tiles","tiles.png",tileSize,tileSize);
		},
		create: function(){
			score = 0;
               offsetX = (game.width-(fieldSize*tileSize))/2+tileSize/2;
               offsetY = (game.height-(fieldSize*tileSize))/2+tileSize/2;
               topScore = localStorage.getItem("topArrowScore")==null?0:localStorage.getItem("topArrowScore");
               scoreText = game.add.text(10,10,"-",{
				font:"bold 16px Arial"
			});
			updateScore();
			for(var i=0;i<fieldSize;i++){
				fieldArray[i] = [];
				for(var j=0;j<fieldSize;j++){
					var tileSprite = game.add.sprite(i*tileSize+offsetX,j*tileSize+offsetY,"tiles");
					tileSprite.anchor.setTo(0.5);
					tileSprite.angle = 0
					fieldArray[i][j] = {
						tileValue: 0,
						image: tileSprite,
						arrows: [],
						validMove: false
					};
				}
			}
			for(i=0;i<startingArrows;i++){
				addArrow(false);
				game.input.onDown.add(selectArrow, this);
			}
		}
	}
	function updateScore(){
		scoreText.text = "Score: "+score+" - Best: "+topScore;
	}
	function selectArrow(e){
		if(!moving){
			var row = Math.floor((e.x-(game.width-(fieldSize*tileSize))/2)/tileSize);
			var col = Math.floor((e.y-(game.height-(fieldSize*tileSize))/2)/tileSize);
			if(row>=0 && col>=0 && row<fieldSize && col<fieldSize){
				if(fieldArray[row][col].validMove){
					score++;
					updateScore();
					moving = true;
                         addArrow(true);
					for(var i=0;i<fieldSize;i++){
						for(var j=0;j<fieldSize;j++){
							fieldArray[i][j].validMove = false;
							fieldArray[i][j].image.frame = 0;
						}
					}
                         for(j=0;j<fieldArray[row][col].arrows.length;j++){
     					switch(fieldArray[row][col].arrows[j].direction){
     						case 1:
     							var destination = {
     								y: game.height+tileSize/2
     							};
     							for(i=col+1;i<fieldSize;i++){
     								if(fieldArray[row][i].tileValue>0){
     									fieldArray[row][i].image.frame = 1;
     									fieldArray[row][i].validMove	= true;
     								}
     							}
     							break;
     						case 2:
     							var destination = {
     								x: -tileSize/2
     							}
                                        for(i=row-1;i>=0;i--){
     								if(fieldArray[i][col].tileValue>0){
     									fieldArray[i][col].image.frame = 1;
     									fieldArray[i][col].validMove	= true;
     								}
     							}
     							break;
     						case 4:
     							var destination = {
     								y: -tileSize/2
     							};
                                        for(i=col-1;i>=0;i--){
     								if(fieldArray[row][i].tileValue>0){
     									fieldArray[row][i].image.frame = 1;
     									fieldArray[row][i].validMove	= true;
     								}
     							}
     							break;
     						case 8:
     							var destination = {
     								x: game.width+tileSize/2
     							};
                                        for(i=row+1;i<fieldSize;i++){
     								if(fieldArray[i][col].tileValue>0){
     									fieldArray[i][col].image.frame = 1;
     									fieldArray[i][col].validMove	= true;
     								}
     							}
     							break;
     					}
                              fieldArray[row][col].tileValue = 0;
     					var arrowTween = game.add.tween(fieldArray[row][col].arrows[j].sprite).to(destination,400,Phaser.Easing.Cubic.InOut,true);
                              arrowTween.onComplete.add(prepareNextMove,this);
                         }
                         fieldArray[row][col].arrows = [];
                         fieldArray[row][col].arrows.length = 0;
				}
			}
		}
	}
	function prepareNextMove(s){
		s.destroy();
		moving = false;
          var canContinue = false;
          for(var i=0;i<fieldSize;i++){
			for(var j=0;j<fieldSize;j++){
				if(fieldArray[i][j].validMove){
                         canContinue = true;
                         break;
                    }
			}
		}
          if(!canContinue){
          	game.stage.backgroundColor = "#880000";
               localStorage.setItem("topArrowScore",Math.max(score,topScore));
			game.time.events.add(Phaser.Timer.SECOND, function(){
				game.state.start("PlayGame");
			}, this);
          }
	}
     function addArrow(multi){
          do{
     		var randomRow = game.rnd.between(0,fieldSize-1);
     		var randomCol = game.rnd.between(0,fieldSize-1);
     	} while(fieldArray[randomRow][randomCol].tileValue!=0)
          do{
          	fieldArray[randomRow][randomCol].tileValue=Math.pow(2,game.rnd.between(0,3));
               if(multi){
                    var isMulti = game.rnd.between(1,100);
                    if(isMulti<doubleRatio){
                         fieldArray[randomRow][randomCol].tileValue = 5*game.rnd.between(1,2);
                    }
                    if(isMulti>100-quadrupleRatio){
                         fieldArray[randomRow][randomCol].tileValue = 15;
                    }
               }
          } while(!isLegal(randomRow,randomCol));
     	fieldArray[randomRow][randomCol].image.frame=1;
     	fieldArray[randomRow][randomCol].validMove=true;
          var powArray = getPowSum(fieldArray[randomRow][randomCol].tileValue);
          for(var i=0;i<powArray.length;i++){
               var arrowSprite = game.add.sprite(randomRow*tileSize+offsetX,randomCol*tileSize+offsetY,"tiles");
          	arrowSprite.anchor.setTo(0.5);
          	arrowSprite.frame = 2;
               switch(powArray[i]){
                    case 2:
                         arrowSprite.angle = 90;
                         break;
                    case 4:
                         arrowSprite.angle = 180;
                         break;
                    case 8:
                         arrowSprite.angle = 270;
                         break;
               }
          	fieldArray[randomRow][randomCol].arrows.push({
                    sprite:arrowSprite,
                    direction:powArray[i]
               });
          }
     }
     function isLegal(row,col){
          if(row!=0 && col!=0 && row<fieldSize-1 && col<fieldSize-1){
               return true
          }
          if(row==0 && fieldArray[row][col].tileValue==2){
               return false
          }
          if(row==fieldSize-1 && fieldArray[row][col].tileValue==8){
               return false
          }
          if(col==0 && fieldArray[row][col].tileValue==4){
               return false
          }
          if(col==fieldSize-1 && fieldArray[row][col].tileValue==1){
               return false
          }
          return true
     }
     function getPowSum(n){
          var bitValue = 1;
          var powerArray = [];
          while(bitValue<=n){
               if(bitValue & n){
                    powerArray.push(bitValue)
               };
               bitValue <<= 1;
          }
          return powerArray;
     }
	game.state.add("PlayGame",playGame);
	game.state.start("PlayGame")
}

As usual, you can download the full source code, and I am waiting for your best scores, mine is 45 at the moment.
