How to integrate Facebook Instant Games API in your Phaser game – managing leaderboards

Here we go with another step in the integration of Facebook Instant Games API in your Phaser game. In first step we covered the bare bones of Facebook Instant Games API integration. In second step we displayed player name and profile picture. In third step we saved relevant game information such as the personal best score. Now it’s time to create and manage leaderboards. First, you have to create a new leaderboard in your Instant Games -> Leaderboards page: Give your leaderboard a name – it’s just an internal name so don’t worry – and set “Contextual Leaderboard” to “No” as you want your leaderboard to be global, including all Facebook players. Then, you will save the score on the leaderboard this way:
FBInstant.getLeaderboardAsync("global_leaderboard").then(leaderboard => {
    console.log("retrieved leaderboard: " + leaderboard.getName());
    return leaderboard.setScoreAsync(this.score);
}).then(() => console.log("Score saved: " + this.score)).catch(error => console.error(error));

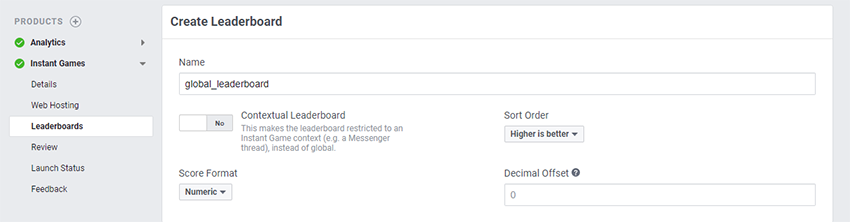

Where global_leaderboard is the leaderboard internal name and this.score is the score you are going to save. To retrieve scores, use:
FBInstant.getLeaderboardAsync("global_leaderboard")  .then(leaderboard => leaderboard.getEntriesAsync(3, 0)).then(entries => {
    console.log("TOP SCORES")
    for (var i = 0; i < entries.length; i++) {
        console.log("#" + entries[i].getRank() + " " + entries[i].getPlayer().getName() + ": " + entries[i].getScore());
    }
}).catch(error => console.error(error));
Where global_leaderboard is the leaderboard internal name and leaderboard.getEntriesAsync(count, offset) means “retrieve count entries starting from offset“. count has a default value of 10 and can be used to retrieve up to 100 entries. The complete source code of the game, with new lines highlighted, now is
var game;
var savedData = {
    bestScore: 0
};

var gameOptions = {
    gameHeight: 1334,
    backgroundColor: 0x08131a,
    visibleTargets: 9,
    ballDistance: 120,
    rotationSpeed: 4,
    angleRange: [25, 155],
    localStorageName: "riskystepsgame"
}

var facebookStuff = {
    name: "",
    picture: ""
}

FBInstant.initializeAsync().then(function(){
    FBInstant.setLoadingProgress(100);
    FBInstant.startGameAsync().then(function(){
        facebookStuff.name = FBInstant.player.getName();
        facebookStuff.picture = FBInstant.player.getPhoto();
        var windowWidth = window.innerWidth;
        var windowHeight = window.innerHeight;
        if(windowWidth > windowHeight){
            windowWidth = windowHeight / 1.8;
        }
        var gameWidth = windowWidth * gameOptions.gameHeight / windowHeight;
        game = new Phaser.Game(gameWidth, gameOptions.gameHeight, Phaser.CANVAS);
        game.state.add("Boot", boot);
        game.state.add("Preload", preload);
        game.state.add("TitleScreen", titleScreen);
        game.state.add("PlayGame", playGame);
        game.state.start("Boot");
    })
})

var boot = function(){};
boot.prototype = {
  	preload: function(){
        game.load.image("loading", "assets/sprites/loading.png");
	},
  	create: function(){
        game.scale.scaleMode = Phaser.ScaleManager.SHOW_ALL;
        game.scale.pageAlignHorizontally = true;
        game.scale.pageAlignVertically = true;
        game.stage.disableVisibilityChange = true;
        game.stage.backgroundColor = gameOptions.backgroundColor;
        game.state.start("Preload");
	}
}

var preload = function(){};
preload.prototype = {
    preload: function(){
        var loadingBar = this.add.sprite(game.width / 2, game.height / 2, "loading");
        loadingBar.anchor.setTo(0.5);
        game.load.setPreloadSprite(loadingBar);
        game.load.image("title", "assets/sprites/title.png");
        game.load.image("playbutton", "assets/sprites/playbutton.png");
        game.load.image("ball", "assets/sprites/ball.png");
        game.load.image("target", "assets/sprites/target.png");
        game.load.image("arm", "assets/sprites/arm.png");
        game.load.image("homebutton", "assets/sprites/homebutton.png");
        game.load.image("tap", "assets/sprites/tap.png");
        game.load.image("fog", "assets/sprites/fog.png");
        game.load.image("logo", "assets/sprites/logo.png");
        game.load.image("profilepicture", facebookStuff.picture);
        game.load.bitmapFont("font", "assets/fonts/font.png", "assets/fonts/font.fnt");
        game.load.bitmapFont("whitefont", "assets/fonts/whitefont.png", "assets/fonts/whitefont.fnt");
        game.load.audio("failsound", ["assets/sounds/fail.mp3", "assets/sounds/fail.ogg"]);
        game.load.audio("hitsound", ["assets/sounds/hit.mp3", "assets/sounds/hit.mp3"]);
        game.load.audio("hit2sound", ["assets/sounds/hit2.mp3", "assets/sounds/hit2.ogg"]);
    },
    create: function(){
        game.state.start("TitleScreen");
    }
}

var titleScreen = function(){};

titleScreen.prototype = {
    create: function(){
        FBInstant.player.getDataAsync(["score"]).then(function(data){
            if(typeof data["score"] !== "undefined"){
                savedData.bestScore = data["score"];
            }
            game.add.bitmapText(game.width / 2, 440, "whitefont", savedData.bestScore.toString(), 60).anchor.set(0.5, 1);
        });
        var title = game.add.image(game.width / 2, 50, "title");
        title.anchor.set(0.5, 0);
        var playButton = game.add.button(game.width / 2, game.height / 2, "playbutton", this.startGame);
        playButton.anchor.set(0.5);
        var tween = game.add.tween(playButton.scale).to({
            x: 0.8,
            y: 0.8
        }, 500, Phaser.Easing.Linear.None, true, 0, -1);
        tween.yoyo(true);
        var logoButton = game.add.button(game.width / 2, game.height - 40, "logo", function(){

        }, this);
        logoButton.anchor.set(0.5, 1);
        game.add.bitmapText(game.width / 2, 320, "whitefont", "WELCOME " + facebookStuff.name.toUpperCase(), 48).anchor.set(0.5, 1);
        game.add.bitmapText(game.width / 2, 380, "font", "BEST SCORE", 48).anchor.set(0.5, 1);
        var profileImage = game.add.image(game.width / 2, playButton.y + 250, "profilepicture");
        profileImage.anchor.set(0.5);
        profileImage.width = 200;
        profileImage.height = 200;

    },
    startGame: function(){
        game.state.start("PlayGame");
    }
}

var playGame = function(){};

playGame.prototype = {
    create: function(){
        FBInstant.getLeaderboardAsync("global_leaderboard")  .then(leaderboard => leaderboard.getEntriesAsync(3, 0)).then(entries => {
            console.log("TOP SCORES")
            for (var i = 0; i < entries.length; i++) {
                console.log("#" + entries[i].getRank() + " " + entries[i].getPlayer().getName() + ": " + entries[i].getScore());
            }
        }).catch(error => console.error(error));
        this.failSound = game.add.audio("failsound");
        this.hitSound = [game.add.audio("hitsound"), game.add.audio("hit2sound")];
        this.runUpdate = true;
        this.score = 0;
        this.destroy = false;
        this.rotationSpeed = gameOptions.rotationSpeed;
        this.targetArray = [];
        this.steps = 0;
        this.rotatingDirection = game.rnd.between(0, 1);
        this.gameGroup = game.add.group();
        this.targetGroup = game.add.group();
        this.ballGroup = game.add.group();
        this.gameGroup.add(this.targetGroup);
        this.gameGroup.add(this.ballGroup);
        this.arm = game.add.sprite(game.width / 2, 900, "arm");
        this.arm.anchor.set(0, 0.5);
        this.arm.angle = 90;
        this.ballGroup.add(this.arm);
        this.balls = [
            game.add.sprite(game.width / 2, 900, "ball"),
            game.add.sprite(game.width / 2, 900 + gameOptions.ballDistance, "ball")
        ]
        this.balls[0].anchor.set(0.5);
        this.balls[1].anchor.set(0.5);
        this.ballGroup.add(this.balls[0]);
        this.ballGroup.add(this.balls[1]);
        this.rotationAngle = 0;
        this.rotatingBall = 1;
        var target = game.add.sprite(0, 0, "target");
        target.anchor.set(0.5);
        target.x = this.balls[0].x;
        target.y = this.balls[0].y;
        this.targetGroup.add(target);
        this.targetArray.push(target);
        game.input.onDown.add(this.changeBall, this);
        for(var i = 0; i < gameOptions.visibleTargets; i++){
            this.addTarget();
        }
        this.homeButton = game.add.button(game.width / 2, game.height, "homebutton", function(){
            game.state.start("TitleScreen");
        });
        this.homeButton.anchor.set(0.5, 1);
        this.tap = game.add.sprite(game.width / 8, this.balls[0].y - 50, "tap");
        this.tap.anchor.set(0.5);
        var fog = game.add.image(0, 0, "fog");
        fog.width = game.width;
        this.scoreText = game.add.bitmapText(20, 20, "whitefont", "0", 60);
    },
    update: function(){
        if(this.runUpdate){
            var distanceFromTarget = this.balls[this.rotatingBall].position.distance(this.targetArray[1].position);
            if(distanceFromTarget > 90 && this.destroy && this.steps > gameOptions.visibleTargets){
                var ohnoText = game.add.bitmapText(0, 100, "whitefont", "TOO LATE!!", 48);
                ohnoText.anchor.set(0.5);
                this.targetArray[0].addChild(ohnoText);
                this.gameOver();
            }
            if(distanceFromTarget < 25 && !this.destroy){
                this.destroy = true;
            }
            if(this.steps == gameOptions.visibleTargets){
                if(distanceFromTarget < 20){
                    this.tap.alpha = 1;
                }
                else{
                    this.tap.alpha = 0.2;
                }
            }
            this.rotationAngle = (this.rotationAngle + this.rotationSpeed * (this.rotatingDirection * 2 - 1)) % 360;
            this.arm.angle = this.rotationAngle + 90;
            this.balls[this.rotatingBall].x = this.balls[1 - this.rotatingBall].x - gameOptions.ballDistance * Math.sin(Phaser.Math.degToRad(this.rotationAngle));
            this.balls[this.rotatingBall].y = this.balls[1 - this.rotatingBall].y + gameOptions.ballDistance * Math.cos(Phaser.Math.degToRad(this.rotationAngle));
            var distanceX = this.balls[1 - this.rotatingBall].worldPosition.x - game.width / 2;
            var distanceY = this.balls[1 - this.rotatingBall].worldPosition.y - 900;
            this.gameGroup.x = Phaser.Math.linearInterpolation([this.gameGroup.x, this.gameGroup.x - distanceX], 0.05);
            this.gameGroup.y = Phaser.Math.linearInterpolation([this.gameGroup.y, this.gameGroup.y - distanceY], 0.05);
        }
    },
    changeBall:function(e){
        if(this.tap != null){
            this.tap.destroy();
            this.tap = null;
        }
        var homeBounds = this.homeButton.getBounds();
        if(homeBounds.contains(e.position.x, e.position.y)){
            this.runUpdate = false;
            return;
        }
        this.hitSound[this.rotatingBall].play();
        this.destroy = false;
        var distanceFromTarget = this.balls[this.rotatingBall].position.distance(this.targetArray[1].position);
        if(distanceFromTarget < 20){
            var points = Math.floor((20 - distanceFromTarget) / 2);
            this.score += points;
            this.scoreText.text = this.score.toString();
            this.rotatingDirection = game.rnd.between(0, 1);
            var fallingTarget = this.targetArray.shift();
            var tween = game.add.tween(fallingTarget).to({
                alpha: 0,
                width: 0,
                height: 0
            }, 2500, Phaser.Easing.Cubic.Out, true);
            tween.onComplete.add(function(target){
                target.destroy();
            }, this)
            this.arm.position = this.balls[this.rotatingBall].position;
            this.rotatingBall = 1 - this.rotatingBall;
            this.rotationAngle = this.balls[1 - this.rotatingBall].position.angle(this.balls[this.rotatingBall].position, true) - 90;
            this.arm.angle = this.rotationAngle + 90;
            this.addTarget();
        }
        else{
            var ohnoText = game.add.bitmapText(0, 100, "whitefont", "MISSED!!", 48);
            ohnoText.anchor.set(0.5);
            this.targetArray[0].addChild(ohnoText);
            this.gameOver();
        }
    },
    addTarget: function(){
        this.steps++;
        startX = this.targetArray[this.targetArray.length - 1].x;
        startY = this.targetArray[this.targetArray.length - 1].y;
        var target = game.add.sprite(0, 0, "target");
        var randomAngle = game.rnd.between(gameOptions.angleRange[0] + 90, gameOptions.angleRange[1] + 90);
        target.anchor.set(0.5);
        target.x = startX + gameOptions.ballDistance * Math.sin(Phaser.Math.degToRad(randomAngle));
        target.y = startY + gameOptions.ballDistance * Math.cos(Phaser.Math.degToRad(randomAngle));
        var stepText = game.add.bitmapText(0, 0, "whitefont", this.steps.toString(), 32);
        stepText.anchor.set(0.5);
        target.addChild(stepText);
        this.targetGroup.add(target);
        this.targetArray.push(target);
    },
    gameOver: function(){
        this.failSound.play();
        var finalSteps = this.steps - gameOptions.visibleTargets;
        this.scoreText.text = this.score.toString() + " * " + finalSteps + " = " + (this.score * finalSteps).toString();
        this.score *= finalSteps;
        FBInstant.player.setDataAsync({
            "score": Math.max(savedData.bestScore, this.score)
        });
        FBInstant.getLeaderboardAsync("global_leaderboard").then(leaderboard => {
            console.log("retrieved leaderboard: " + leaderboard.getName());
            return leaderboard.setScoreAsync(this.score);
        }).then(() => console.log("Score saved: " + this.score)).catch(error => console.error(error));
        this.runUpdate = false;
        game.input.onDown.remove(this.changeBall, this);
        this.rotationSpeed = 0;
        this.arm.destroy();
        var gameOverTween = game.add.tween(this.balls[1 - this.rotatingBall]).to({
            alpha: 0
        }, 1500, Phaser.Easing.Cubic.Out, true);
        gameOverTween.onComplete.add(function(){
            game.state.start("PlayGame");
        }, this);
    }
}

I submitted the game for distribution, so hopefully in a few days you should be able to fight for leaderboards, with a proper leaderboard page. Meanwhile download the source code.

Get the most popular Phaser 3 book

Through 202 pages, 32 source code examples and an Android Studio project you will learn how to build cross platform HTML5 games and create a complete game along the way.

Get the book

215 GAME PROTOTYPES EXPLAINED WITH SOURCE CODE
// 1+2=3
// 100 rounds
// 10000000
// 2 Cars
// 2048
// A Blocky Christmas
// A Jumping Block
// A Life of Logic
// Angry Birds
// Angry Birds Space
// Artillery
// Astro-PANIC!
// Avoider
// Back to Square One
// Ball Game
// Ball vs Ball
// Ball: Revamped
// Balloon Invasion
// BallPusher
// Ballz
// Bar Balance
// Bejeweled
// Biggification
// Block it
// Blockage
// Bloons
// Boids
// Bombuzal
// Boom Dots
// Bouncing Ball
// Bouncing Ball 2
// Bouncy Light
// BoxHead
// Breakout
// Bricks
// Bubble Chaos
// Bubbles 2
// Card Game
// Castle Ramble
// Chronotron
// Circle Chain
// Circle Path
// Circle Race
// Circular endless runner
// Cirplosion
// CLOCKS - The Game
// Color Hit
// Color Jump
// ColorFill
// Columns
// Concentration
// Crossy Road
// Crush the Castle
// Cube Jump
// CubesOut
// Dash N Blast
// Dashy Panda
// Deflection
// Diamond Digger Saga
// Don't touch the spikes
// Dots
// Down The Mountain
// Drag and Match
// Draw Game
// Drop Wizard
// DROP'd
// Dudeski
// Dungeon Raid
// Educational Game
// Elasticity
// Endless Runner
// Erase Box
// Eskiv
// Farm Heroes Saga
// Filler
// Flappy Bird
// Fling
// Flipping Legend
// Floaty Light
// Fuse Ballz
// GearTaker
// Gem Sweeper
// Globe
// Goat Rider
// Gold Miner
// Grindstone
// GuessNext
// Helicopter
// Hero Emblems
// Hero Slide
// Hexagonal Tiles
// HookPod
// Hop Hop Hop Underwater
// Horizontal Endless Runner
// Hundreds
// Hungry Hero
// Hurry it's Christmas
// InkTd
// Iromeku
// Jet Set Willy
// Jigsaw Game
// Knife Hit
// Knightfall
// Legends of Runeterra
// Lep's World
// Line Rider
// Lumines
// Magick
// MagOrMin
// Mass Attack
// Math Game
// Maze
// Meeblings
// Memdot
// Metro Siberia Underground
// Mike Dangers
// Mikey Hooks
// Nano War
// Nodes
// o:anquan
// One Button Game
// One Tap RPG
// Ononmin
// Pacco
// Perfect Square!
// Perfectionism
// Phyballs
// Pixel Purge
// PixelField
// Planet Revenge
// Plants Vs Zombies
// Platform
// Platform game
// Plus+Plus
// Pocket Snap
// Poker
// Pool
// Pop the Lock
// Pop to Save
// Poux
// Pudi
// Pumpkin Story
// Puppet Bird
// Pyramids of Ra
// qomp
// Quick Switch
// Racing
// Radical
// Rebuild Chile
// Renju
// Rise Above
// Risky Road
// Roguelike
// Roly Poly
// Run Around
// Rush Hour
// SameGame
// SamePhysics
// Save the Totem
// Security
// Serious Scramblers
// Shrink it
// Sling
// Slingy
// Snowflakes
// Sokoban
// Space Checkers
// Space is Key
// Spellfall
// Spinny Gun
// Splitter
// Spring Ninja
// Sproing
// Stabilize!
// Stack
// Stairs
// Stick Hero
// String Avoider
// Stringy
// Sudoku
// Super Mario Bros
// Surfingers
// Survival Horror
// Talesworth Adventure
// Tetris
// The Impossible Line
// The Moops - Combos of Joy
// The Next Arrow
// Threes
// Tic Tac Toe
// Timberman
// Tiny Wings
// Tipsy Tower
// Toony
// Totem Destroyer
// Tower Defense
// Trick Shot
// Tunnelball
// Turn
// Turnellio
// TwinSpin
// vvvvvv
// Warp Shift
// Way of an Idea
// Whack a Creep
// Wheel of Fortune
// Where's my Water
// Wish Upon a Star
// Word Game
// Wordle
// Worms
// Yanga
// Yeah Bunny
// Zhed
// zNumbers
